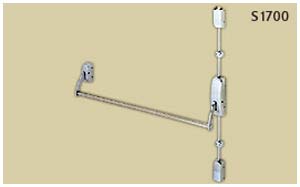

Model: Vertical Rod Exit Device
Chassis:
Pressure formed non-ferrous alloy
Chassis and end covers:
Cold drawn brass, bronze or stainless steel
Door Thickness:
1-3/4" (44.45 mm) standard, available for thick doors
Handing: Handed. Specify LHRB or RHRB
Dogging: Allen type only.
Top/Bottom Bolts: Brass
Latchbolt: N/A
Crossbar Arms:
Forged brass and stainless steel
Crossbar:
1" (25.40 mm) brass, bronze and stainless steel tubing, .062" (1.5875 mm) thick
Crossbar projection:
4-1/2" (114.3 mm) neutral, 2-3/4" (69.85
depressed
Opening Height:
90" (2286.00 mm) standard
Fire Exit Hardware-up to:
- 4` x 7`2" single door
- 8` x 7`2" pairs of doors
Finishes:
US3,US4,US10,US10B,US26,US26D. |
