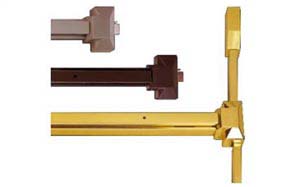

8000 Series Specifications:
·Material - Push bar painted heavy gauge steel, spring of stainless steel.
·Latch Bolts - 3/4" throw, stainless steel.
·Dead Latch Bolt - 5/8" stainless steel.
·Strike - For 5/8" stop, plus shim for 1/2" stop.
·Projection - 2-1/2" maximum, 1-7/8" depressed
·Reversible - Non-handed. Reversible for all functions and trims.
·For Door - 1-3/4" thick standard. Specify if other than 1-3/4" thick.
·Backset - 2-3/4".
·161 Cut Out - Device covers 161 cu out. Some trims require cover plate.
·Sex Bolts - Standard packaging for use with wood, composite or non reinforced doors on vertical rod devices.
·Door Width - For door 2`6" to 3`0" wide - 3`0" standard; for door 3`0" to 4`0" wide - 4`0" standard
·Stile Height - 4-1/4" min.
·Mounting Height - 40-5/16" from CL to finished floor recommended.
·Mounting - Furnished standard with sheet metal & machine screws.
·Cylinder - Schlage "C" keyway, other keyways specify.
·Dogging - 1/4 turn, hex key dogging on non-fire-labeled devices.
·U.L. Listed - For panic hardware
·Operation - Inside by slight pressure on any point on the push bar at all times.
·Top Latchbolt - 3/4" throw, stainless steel.
·Top Deadbolt - 1/2" throw, steel bolt.
·Bottom Latchbolt - 3/4" throw, stainless steel.
·Door Height - For door up to 7`0" high - 7`0" standard. For door up to 7`0" to 8`0" - 8`0" standard. |
