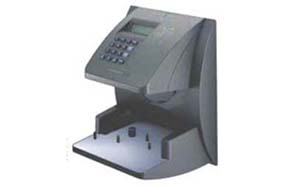

The HandKey II brings the security and convenience of biometric identification to any access control application at an affordable price. HandKey II terminals verify people based on their unique hand patterns, not a card, key or PIN that can easily be transferred to someone else.
The elimination of cards drives down the cost of administration while substantially increasing the level of security. Users appreciate the convenience of never worrying about keeping a card or key.
When used with HandNet 2.0 for Windows, you gain the benefits of centralized access control. Up to 1000 HandKey II terminals can be monitored in real time, and customizable reports may be defined, saved, and printed showing usage statistics for all access control terminals set up in the system.
Features:
· Door operation and monitoring
· Card reader input optional
· Request for exit
· Tamper switch
· Memory expansion from 512 (standard) to 32,512 users
· RS-232 printer output
· Standalone or networked operation
· Integrated wall mount design
· Multiple auxiliary inputs and outputs
· 62 user-definable time zones
· Outdoor version available
· Optional modem or Ethernet module
Specifications:
· Part number: HK-2
· Size: 8.85" (width) x 11.65" (height) x 8.55" (depth)
(22.3cm x 29.6cm x 21.7cm)
· Weight: 6 lbs. (2.7 kg)
· Verification time: Less than 1 second
· Template size: 9 bytes
· Power: 12-24 V DC or AC
· Memory retention: Up to 5 years via the standard internal lithium battery
· ID number: 1 to 10 digits from keypad or card reader
· Transaction storage: 5120 transactions, buffered
· Communications: RS-485 (4-wire and 2-wire)
RS-232 serial printer support or network communications
· Baud rate: 1200 to 28.8K bps
· User capacity: 512 users standard, internally expandable to 32,512
· Door controls: Door lock output – Sinks 0-24VDC, 100mA max.
Alarm monitoring – Tamper, Door switch, Two auxiliary inputs
Three auxiliary outputs – Sinks 0-24VDC, 100mA max.
Request for exit – Switch or keypad
· Card reader input: Proximity, Wiegand, magnetic stripe, or barcode
· Card reader emulation output: Wiegand, magnetic stripe, or barcode
· Duress code: 1 digit, user definable
· Timezones: 62 user-definable time zones, unlimited holidays
Selected Options:
· Operational UPS battery backup
· High-speed internal modem
· Ethernet communications module
· Memory expansion to 9,728 users
· Memory expansion to 32,512 users
· Data converter
· Auxiliary keypad
· HID proximity reader |
